Rain Water Harvesting

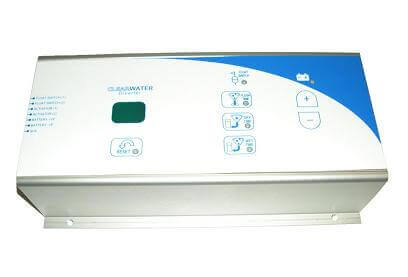

Model DCT1
This controller is part of a rain water harvesting system which diverts the first contaminated rain fall from a collection surface to a waste pipe rather than enter into the collection tank. The controller uses a microprocessor core to provide, reliable, user settable timing function. Power is supplied by a built in switch mode battery charger, that maintains a lead acid battery.
Specifications: Operating Temperature range: 0 to +40°C Case dimensions: 270mm x 140mm x 72mm Weight: 3.6kg Case material: Aluminium Input Power: 100-240VAC, 50/60Hz or 10-30VDC Maximum input power: 18VA Output voltage: 10-30VDC
Maximum output current: 5A Battery type: Low maintenance Lead-acid 12V, 7Ahr Display type: 7-Segment LED
