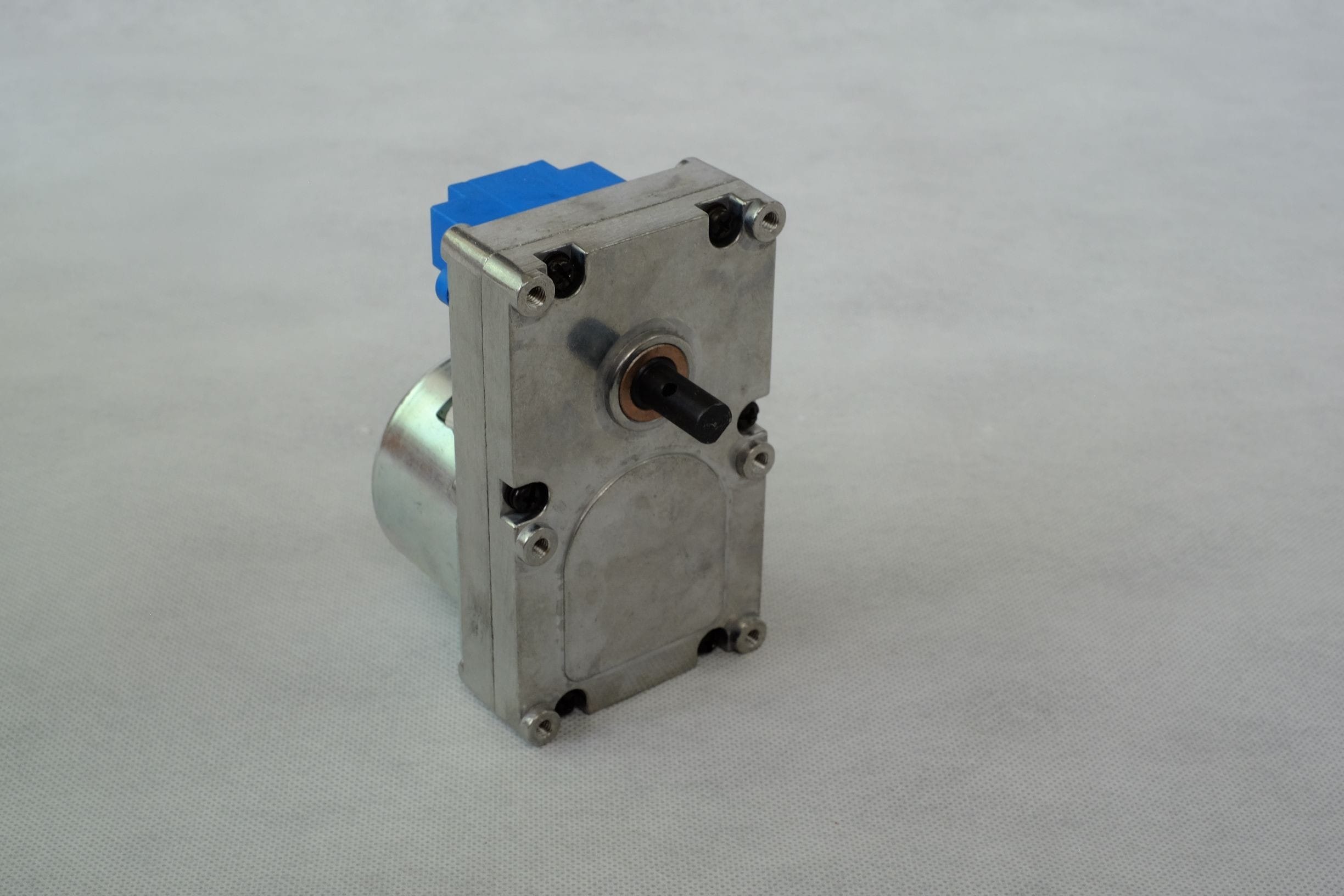

Geared Motor
Model GM64
- Reversible Synchronous Geared Motor.
- Suitable for use in Commercial grills and Rotisserie Spit Roasters. Quiet operation in a compact size.
- Heavy duty zinc die cast gear box with strong metal gears.
- High torque output with stable speed control.
- Instantaneous start/stop.
- Over load and stall protection prevents winding burnout. Proven reliability, backed up with a 12 Month Warranty.
- Specifications: Input power: 220-240VAC, 50Hz, <20W
- Rotation speed: 3.5RPM
- Rotational direction: CW/CCW/Bi-directional
- Weight: 1.7kg
- Torque: 160Kgf.cm
- Noise: < 45dB
- Output shaft dimension: 9.5mm diameter, 20.5mm long
- Motor body dimension: 119mm x 77mm x 70mm (excludes shaft length)
